Place of Origin: | Guangdong, China |
Brand Name: | Boente |
Model Number: | BF1-19A |
Type: | Audio Conference System, Network Conference System, Video Conference System, Conference System | Function: | Presentation |
---|---|---|---|
Simultaneous Interpretation: | Yes | Style: | Lcd Motorized Flip Up Device |
Material: | Aluminum Alloy | Rotatable Angle: | 105 Degree |
Screen Size: | 19 Inch LG Screen | Keyboard: | English Or Customized Language |
Mouse: | Wireless | Connect Interfaces: | VGA/HDMI/ Aduio/ Video/MIC/ Power |
User' Manual: | Yes | Control System: | Touch Button / Remote Control/ Central Control |
Color: | Silver/black Matt /Golden |
BNT displayer 0~120 degree angle lcd motorized flip up device the top surface with button used in video system BF1-19A
Introduction:
LCD Flip up Device is designed to protect and hide LCD monitor and make more space available on the desk. LCD Motorized Flip Up Device is designed according to diverse requirements of users, LCD motorized Flip Open & Close can be placed on various kinds of meeting room and company location, LCD motorized turner also can be embedded in bookcase, filing cabinet also assorts with home theatre in use.
Desktop LCD Rotatable Turner is easy operation, safe and reliable, elegant appearance can be applied to various standard and brands monitor.

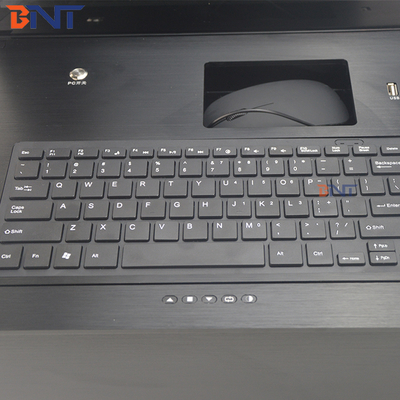

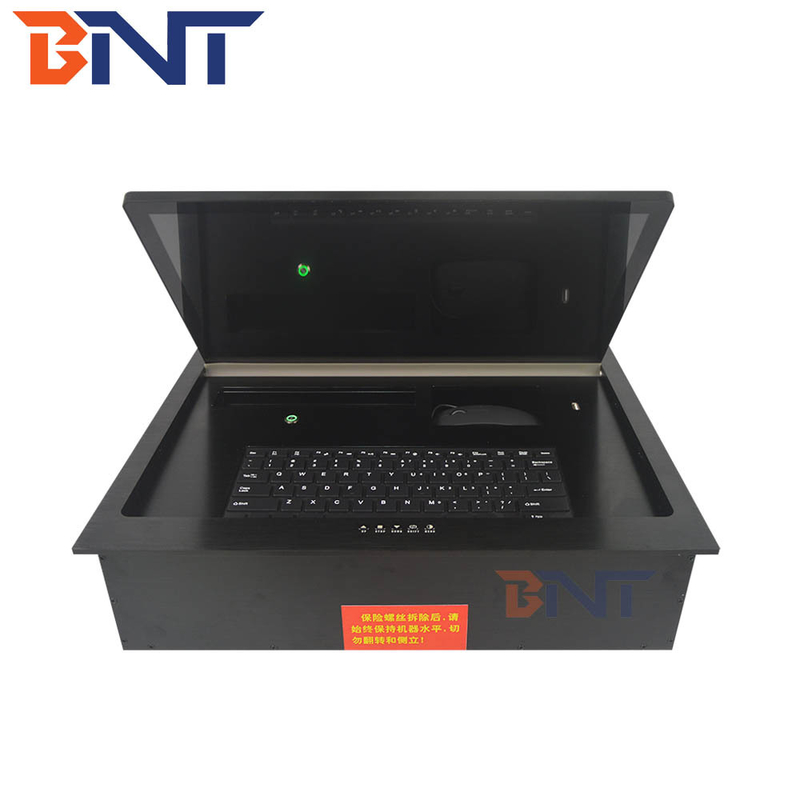

Press the "up" button of the Screen Flip Up Device (or use remote control), the monitor will be turned to a position at an angle of 105 degree from the desktop automatically. Meanwhile, the mouse and key board will be rose to the same level with the desktop automatically. The monitor, keyboard and mouse will be hidden inside the desk if Desktop Motorized Screen Flip Up Lift is not used.
Feature:
1. Different angles setting of LCD motorized flip up device is acceptable according to users’ requirement.
2. Adopting shielding technology for display circuit, no magnetic interference and nonradioactive to human with environmental protection and great security during using our LCD motorized flip up device.
3. Rational design for inner structure ofLCD motorized flip up device; elaborate appearance with ultrathin design which best reflects dignity, coordinating with home furniture with strong decorative art.
4. All circuits of LCD motorized flip up device adopt standard double insulation and safety ground connection earth leakage protection, without faradism and leakage with great security.
5. Limit switch double protection, through professional test, excellent service life.
6. Color of LCD motorized flip up device: matte glad/ matte silver/glittery gold
7. Surface Material of LCD motorized flip up device: aluminum drawing finish /carbon steel
Characteristic
1, high quality aluminum alloy finishing panel with imported motors
2, A=A strong carton with foam cushion and waterproof film
3, white/black/gold color is available for color selection
4, Power plug and voltage could be changed accordingly.
5, Keyboard with English & customized language is available.
6, OEM with logo on product and packing is available
7, Customized made is available
Application:
LCD Motorized Flip up Device is widely used on conference system, like video conference system, TV conference system, financial analyzing system, advanced office system, lecture and training room with conference table& computer desk together.
Parameter:
item model | BF1-19A |
Style | LCD flip up device+Monitor+Keyboard+mouse |
Product consitute | Samsung 19 Inch LED Monitor |
keyboard with english& customized lanaguage | |
Wireless mouse | |
Material | Aluminum alloy draw bench panel |
Panel size | 554*448*6mm |
Box size | 544*436*144mm |
Overturn Angle | 100-105° |
Voltage | 110V,220V,240V |
Power | 15W |
Single trip time | 25s |
Working temp | 5~40 |
Environmental temp | 20~60 |
Related humidity | 20~80% |
Color | Silvery/Black matt/ Golden |
Remote distance | 10m |
Control Way | Touch key-press/ Remote control/RS485 central control |
Protection way | Cable Manager/Protection finger from nipping |
Power protection way | Monitor+keyboard+ mouse turn off automatically |
Professional Service:
1, Any of inquiries will be response within 48 hours
2, Sizable accessories of products for replacement
3, Sample of LCD motorized Flip up deivce is available.
Warranty:
Study the user’s manual carefully before installation.
All of our products provide 12 months warranty! The warranty period starts from the goods receipt by initial consignee.
Payment:
T/T, L/C, Western Union, Money Gram, Crash is acceptable
