Place of Origin: | Guangdong, China |
Brand Name: | Boente |
Model Number: | BBL-24 |
Type: | Audio Conference System, Network Conference System, Video Conference System, Conference System | Function: | Presentation |
---|---|---|---|
Simultaneous Interpretation: | NO | Style: | Computer Monitor Lift |
Material: | Aluminum Alloy | Suitable Size: | 19~24 Inch LCD Screen |
Panel Thickness: | 5mm | Panel Size: | 660*175*3mm |
Box Size: | 648*158*625mm | LCD Mounting Space: | 590*95mm |
LCD Swivel Angle: | 0~15 Degree | Control System: | Touch Switch/Remote Control/RS232 Control |
Color: | Black/silver |

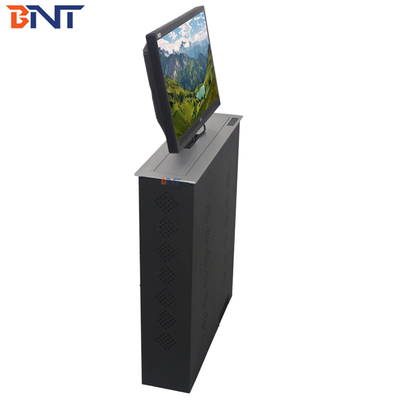

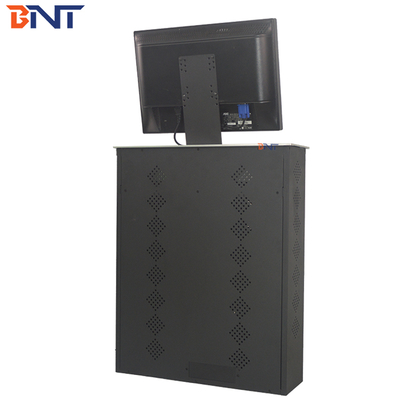

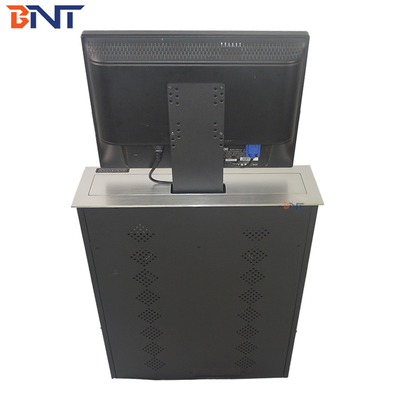

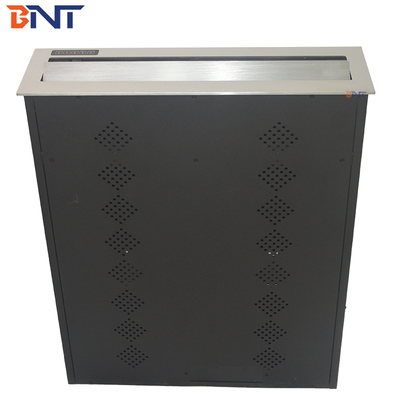

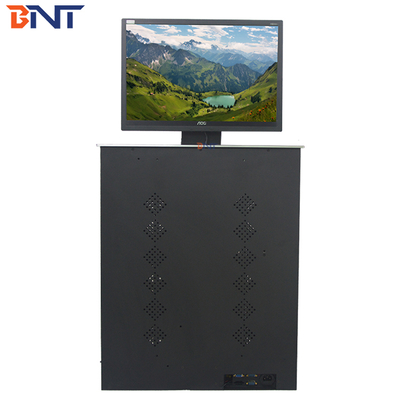

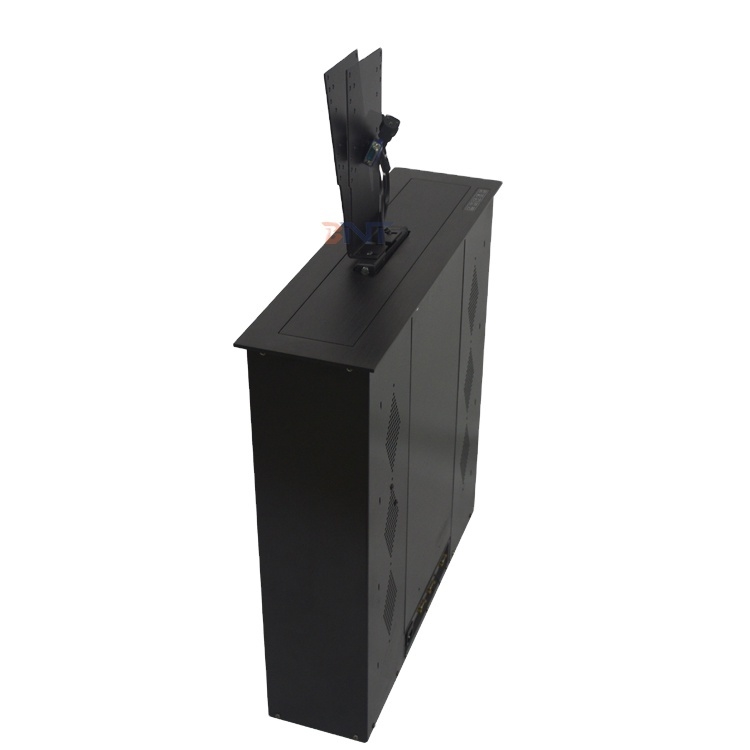

Fits 19~24 inch monitor hidden desk motorized computer monitor lift for conference table
Introduction:
BBL-24 computer monitor lift is a table top mounted motorized monitor lift for 17-24 inch monitor, designed as advance hiding equipment for audio video system.
Controlled conveniently by touch swith, remote control or central control, the screen could be rising up form the conference
tables automatically to present the workable screen by the lift driving.
On the other way, the screen also could be hidden under the tables automatically by the lift driving
once we finish using. With double super-quite synchrous motor, rasing up and down by tank chain
and mechanical gear, the lift is much smooth and quiet when working.
It is widly use in conference system, video conference system, tv conference system, financial analyzing system,
advanced office system,lecture and training room with conference table& computer desk,etc.
Selling Point:
1.Full aluminum alloy finish, orrosion resistant, wear-resistant,smooth surface and not easy to scratch.
2.Motorized by tank chain and mechanical gear, good quality and smooth and quiet when working
3.Hidden design to save more space and makes a modern office environment
4.0-15 degree adjustable angle to make prefect viewing angle for users
5.Virtually Silent working with excellent working life.
6.works smoothly and quietly. Low noise which less than 30db
7.with protecting function of LCD monitors by cutting the electricity off automatically
8.Control system: Touch Switch on LCD motorizedLift panel, RF remote control, RS232 AND rs 485 central control..
9.Power plug and voltage could be changed according to user's requirment
Detail Parameter:
Product name | computer monitor lift |
Model | BBL-24 |
Material | Aluminum alloy |
Panel Size | 660*160*5mm |
Box Size | 640*145*656mm |
Panel Thickness | 5mm |
Available Monitor Space | (L)590*(D)86mm |
Monitor Pitch Angle | 0~15° |
Color | Black/ Silver |
Interface | VGA/High DMI +RS232 I/O |
Remote way | Remote control /Switch/ Central control |
