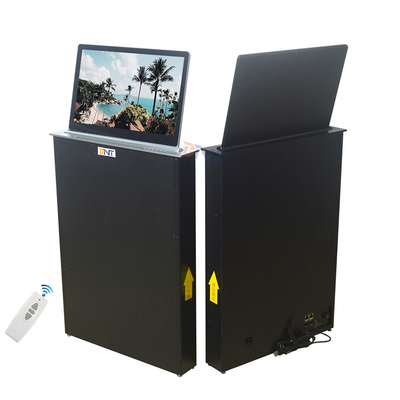

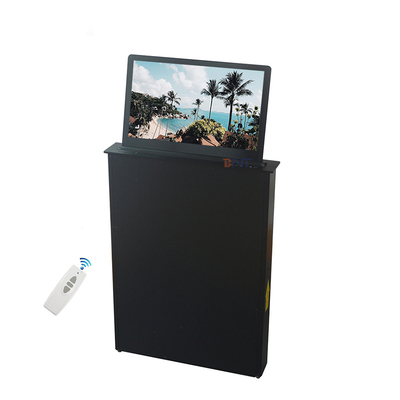

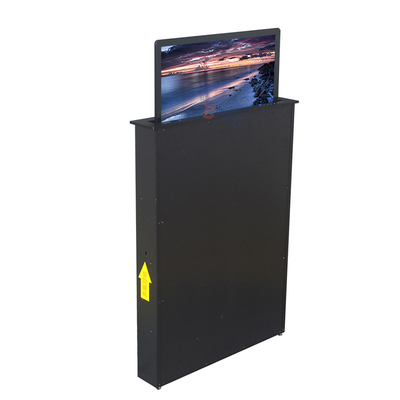

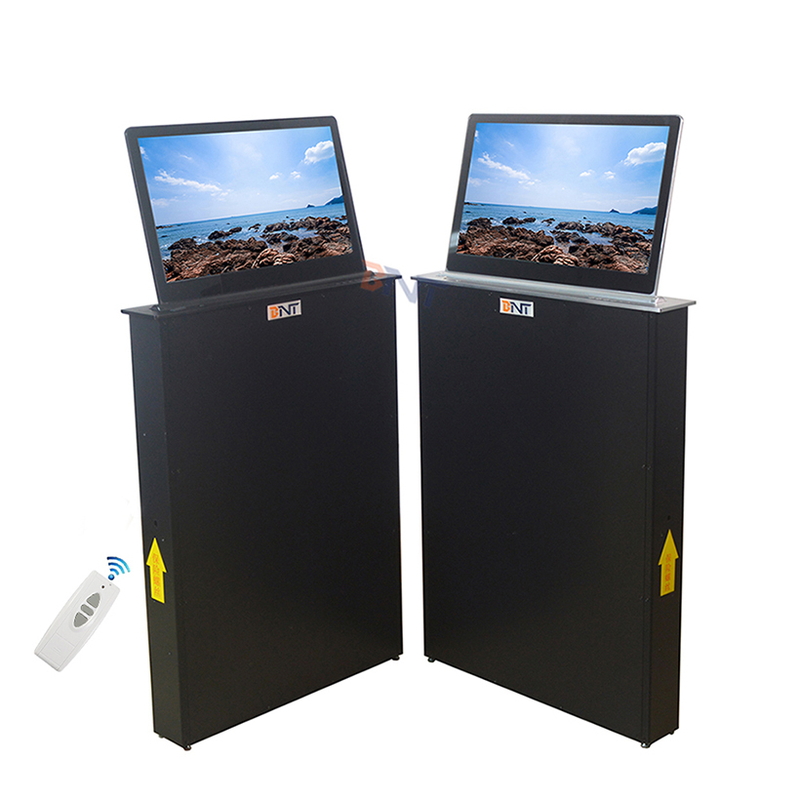

Name: Conference System ultra Thin Hidden Motorized Computer Monitor Lift With FHD Monitor
Brand: Guangzhou Boente Technology Co., Ltd.
SKU: AML-15.6
Availability: InStock

Home Products Motorized Monitor Llft

Conference System ultra Thin Hidden Motorized Computer Monitor Lift With FHD Monitor

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	Boente
Model Number:	AML-15.6

Contact Now

Detailed Product Description

Type:	Audio Conference System, Network Conference System, Video Conference System, Conference System	Function:	Presentation
Simultaneous Interpretation:	NO	Product Name:	Motorized Computer Monitor Lift
Material:	Aluminum Alloy	Panel Thickness:	5mm
Panel Size:	450805mm	Box Size:	43271600mm
Pitch Angle:	20 Degree	Monitor:	FHD 15.6inch Monitor
Resolution:	1920*1080 (16:9)	Interface:	HDMI+USB+RS232 I/O
Color:	Silver / Black

Product Description

Introduction:
Lcd lift is designed as advance hiding equipment with FHD screen for audio video system. 10.1, 13.3, 15.6,17.3, 18.5, 21.5, 23.6 inch FHD Screen for selection to meet the requirement of different monitor size. Controlled by touch switch, remote control, rs232/485 central control system, the screen could be rising up form the conference tables automatically to present the workable
screen by the lift driving.
It is widely use in conference system, audio video conference system, paperless conference system,etc.

Model No.	AML-13.3	AML-15.6	AML-17.3	AML-18.5	AML-21.5	AML-23.6
Monitor	13.3 inch FHD screen	15.6 inch FHD screen	17.3 inch FHD screen	18.5 inch HD screen	21.5 inch FHD screen	23.6 inch FHD screen
Material	Aluminum Alloy	Aluminum Alloy	Aluminum Alloy	Aluminum Alloy	Aluminum Alloy	Aluminum Alloy
Panel Size	400805mm	450805mm	490805mm	515805mm	600805mm	650805mm
Box Size	382145655mm	432147650mm	473147650mm	497147650mm	58271730mm	63271730mm
Monitor Pitch Angle	20 Degree	20 Degree	20 Degree	20 Degree	20 Degree	20 Degree
Adjustable Angle	0-30 Degree	0-30 Degree	0-30 Degree	0-30 Degree	0-30 Degree	0-30 Degree
Panel Color	Black/Sliver	Black/Sliver	Black/Sliver	Black/Sliver	Black/Sliver	Black/Sliver
Interface	HDMI+USB+RS 232 I/O	HDMI+USB+RS 232 I/O	HDMI+USB+RS 232 I/O	HDMI+USB+RS 232 I/O	HDMI+USB+RS 232 I/O	HDMI+USB+RS 232 I/O
Protection System	With Anti-pinch System	With Anti-pinch System	With Anti-pinch System	With Anti-pinch System	With Anti-pinch System	With Anti-pinch System

All-aluminum structure chassis, small size, high-quality aluminum profile and CNC carved processing, elegant appearance. Mechanical spring anti-pinch design, safety and humanization, and stable opening and closing of the door. Smart hidden desk pop up monitor lift mechanism, Controlled by touch switch, remote control and RS232 central control system for video conference system, paperless conference system, conference AV solution.

Details Images

Conference system solution

Monitor screen lift mechanism is designed as advance hiding equipment with FHD screen and built in microphone for audio video

conference system. 10.1, 13.3, 15.6,17.3, 18.5, 21.5, 23.6 inch FHD Screen for selection to meet the requirement of different
monitor size. audio video conference system, paperless conference system,etc.

Standard English language operating system, other national languages can be set as needed.

Full aluminum alloy design

Ultra-light design, all aluminum alloy (Panel+screen frame+case box, including all the parts inside made by aluminum alloy material, )

Motorized by tank chain and mechanical gear, smooth, fast and quiet when working. Protecting function of LCD monitors by cutting the electricity off automatically.

Switch on LCD motorized lift panel, RF remote control, RS232 AND rs 485 central control for intelligent conference system.

Screen pitch angle 0-30 degree

Built-in 13.3-23.6 inch high-definition 1920*1080P high-definition ultra-thin display, can be built-in touch screen, with front camera according as per requirements. 0-30 degree screen pitch angle, 0-60 degree models for selection.

The panel has a 1.8mm chamfered R3 design, which is more convenient for installation, no need to open a counterbore for the panel

Anti-pinching design

All-aluminum structure chassis, small size, super light and ultra thin design, high-quality aluminum profile and CNC carved processing, elegant atmosphere.

Anti-pinching design, safety protection, electro-mechanical damping principle, it will bounce back when encountering any resistance (closed door on the top panel). With finger protection function, when a person leaves their fingers inside it emits a beep sound and stops.

The lifting system adopts special ultra-quiet gears, racks, and non-steel materials, which are quiet, stable and reliable.

After the screen rises, write vigorously on the screen without shaking to ensure the accuracy and continuity of touch positioning.

The elevation stroke is stable and trouble-free for life.

The circuit board is highly integrated, easy to use, and the circuits structure is completely hidden, safe, and reduces operating failures.

The sinking design of the signal and control connection
port facilitates the installation of the connection line.

Buttons

Buttons on panel.

1. With buttons for monitor to lift up /down

2.With buttons for adjust the monitor tilt angle forward/backward you want

3.With button for setup menu(brightness of the monitor, color, language, etc)

4. With buttons for switch the VGA/HDMI input signal(When there are HDMI and VGA 2 way signal input)

Buttons on panel.

With USB connectors on panel, could add one USB more.

With power switch on panel, for monitor power on/off

Buttons on the panel all supported customized made.

Connectors on lift case

VGA/HDMI for video input, USB connectors for data input or touch screen, RS232/RS485 for central control, Colorful cable coil for computer switch extension cable (Red & black for LED, Yellow & green for switch)

Optional Integration

We also have other motorized monitor lift products of the same series with different parameters, you can contact our customer service for a quote according to your needs.

Optional with touch screen.

With built in microphone

(monitor&mic work together/separately)

With built in double screen

(front & back screen same size)

With built in PC computer

(for paperless conference system)

With built in back 10.1" screen

(for name display)

With built in front camera

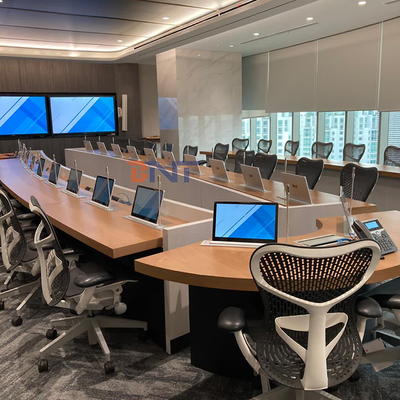

Engineering Case

Conference AV solution with BNT LCD Monitor Lifts

BNT could offer one stand conference system solution devices

Company Profile

Guangzhou Boente Technology Co Ltd is an integrative high-tech enterprise which collects research, development, production, sale and service for desktop socket, pop up power socket, table power socket, LCD monitor lift, TV ceiling lift and projector accessories.Over 13+ years experience in OEM and customization manufacture, 1 set larger laser cutting machine, 10 sets stamping press machine, 2 sets larger bending 10 sets larger CNC machine tools, 2 sets laser making machine, 3 lines testing machine.

→13+ years of professional design and production of lifting, after 13+ years of technical improvement and upgrading, the production technology is mature and stable, and the quality has been recognized by the foreign brand AH, One Element.

→Product design team, 8 engineers with more than 10 years of CAD drawing experience, can provide design drawings within 1 hour if customized products. →Product quality is recognized by AH, One element and become their partner.
