Name: 55 Inch Ceiling Flip Down Motorized TV Lift / TV Ceiling Motorized Lift Motorized Stands Flip Down Ceiling Tv Bracket
Brand: Guangzhou Boente Technology Co., Ltd.
Availability: InStock

Home Products Motorized Tv Lift

55 Inch Ceiling Flip Down Motorized TV Lift / TV Ceiling Motorized Lift Motorized Stands Flip Down Ceiling Tv Bracket

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	Boente
Certification:	ce

Contact Now

Detailed Product Description

Private Mold:	Yes	Type:	Ceiling TV Mount
Max Vesa:	600x400	Material:	Cold Rolled Steel
Maximum Tilt Angle:	105	Maximum Compatible Size:	55"
Minimum Compatible Size:	32"	Suitable TV Size:	32~55 Inch Plasma TV
Loading Capacity:	45kg	Rotate Angle:	0-105 Degree
Control System:	Remote Control/ Wired Switch	Voltage:	110-240AC
Warranty:	1 Years

Products Description

TCL-3 is a LCD TV hidden hanger specially developed for conference engineering, home furnishings, and hotel room applications. It uses professional worm motors from top domestic brands and independently developed digital control circuit boards to ensure reliable and stable operation of the product.

Product name	TV ceiling flipper
PRODUCT MODEL	TCL-3
Flip angle	0-110 ° (adjustable up to 116 °)
Wiring method	Adopting tank chain wiring and built-in wires
Electrical machinery	Communication worm motor
Bear a heavy burden	Net weight of TV set less than 45KG (excluding bracket)
Flip positioning method	Mechanical positioning (with dual protection)
Colour	High gloss white (other colors can be customized)
Elevating height	85 cm (can be equipped with secondary lifting, with electronic limit for up and down lifting)
Remote control distance	50 meters (open space)
Body thickness	210mm (customizable minimum 170mm)
Suitable for installing television	Within 85 inches
Control interface	Wireless remote control, buttons RS232
INPUT VOLTAGE	220V~50/60Hz (customizable voltage 110V)
Power consumption	≤ 100W (standby ≤ 0.5W)
Weight	158kg (net weight)
Installation method	Ceiling hoisting

Product Features

1. Framework structure, simple and easy to install 2. Adopting high-quality AC deceleration, long service life, and good stability 3. Built in integrated control board with high reliability 4. The flip angle can be adjusted, resulting in a more perfect sound performance.

Adopting an electric flip design, the LCD screen/TV is perfectly hidden in the ceiling, and the lifting process is quiet and smooth.

The descending height depends on the size of the TV (supporting TVs up to 85 inches)

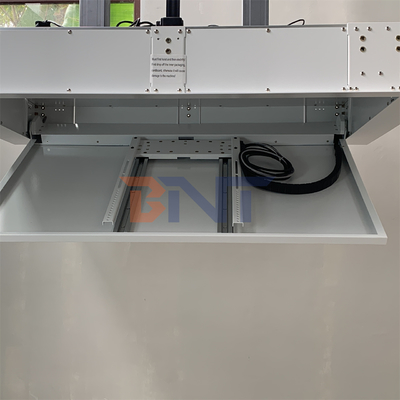

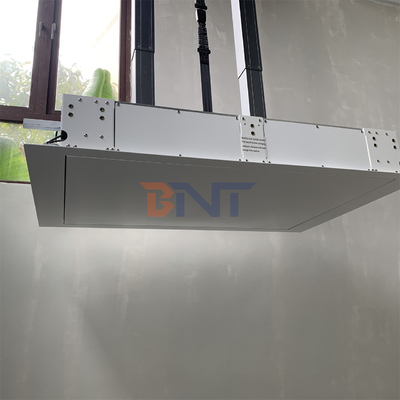

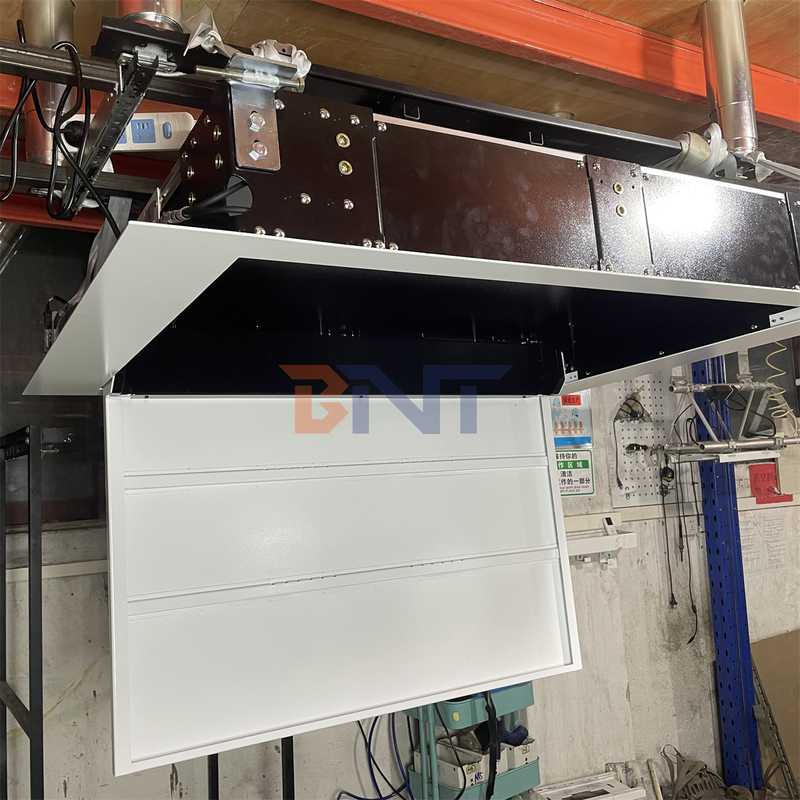

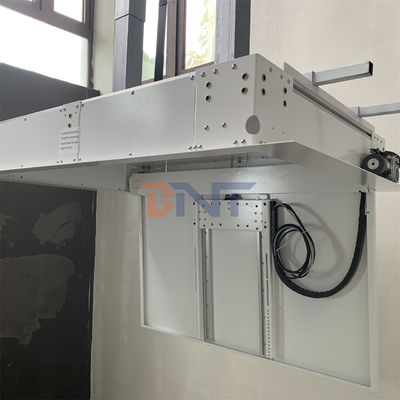

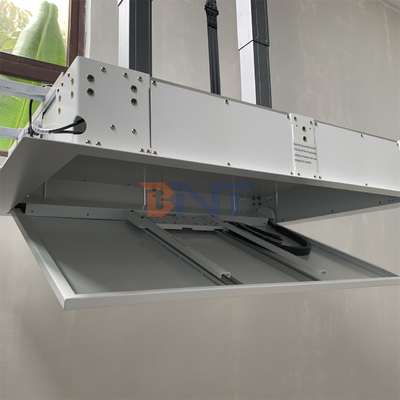

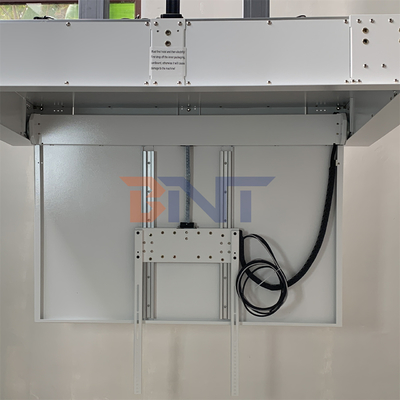

Product Details

Close

Open

Telescoping

Lower limit

Project Case

55 inch size

65 inch size

Other Hot Sale Production

Company Profile

Boente is an integrative high-tech enterprise which collects research, development, production, sale and service. Our head office was established in Hong Kong for our import and export business. Since 2009, primary cognizance product research, production and sale department Boente branch (Guangzhou Boente Technology Co.,Ltd) was settled in Guangzhou. We focus our full energy on audio video system equipment, specializing in the manufacture of LCD monitor lift, desktop socket, projector mount, projector screen, electric desktop flip up socket, pop up socket, flip up LCD monitor, plasma TV lift, media table socket, cable cubby, microphone lift and other related products. Also customization for audio video solution. Boente major to develop in supply paperless office system or conference system. Product quality approved by CE, ROSH, SASO, FCC and UL certification. As excellent and steady quality, professional technical support and impeccable after-sale service, our products are popular in Chinese local and global market, especially in Middle East, Europe and Southeast Asia market, like Saudi Arabia, UAE, Poland, Russian, Iran, Italy, India, Jordan, Kuwait...
