Private Mold: | Yes | Type: | Ceiling TV Mount |
---|---|---|---|
Max Vesa: | 600x400 | Material: | Cold Rolled Steel |
Maximum Tilt Angle: | 105 | Maximum Compatible Size: | 70" |
Minimum Compatible Size: | 32" | Suitable TV Size: | 32~70 Inch Plasma TV |
Loading Capacity: | 60kg | Product Size: | 60*55*22cm |
Rotate Angle: | 0-105 Degree | Control System: | Remote Control/ Wired Switch |
Voltage: | 110-240AC | Warranty: | 1 Years |

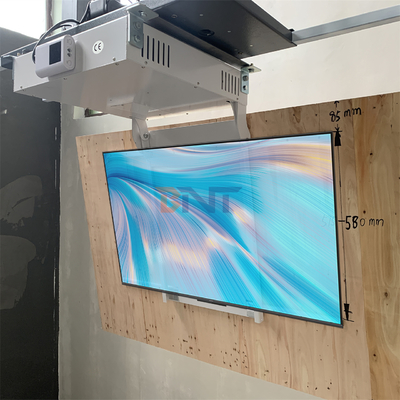

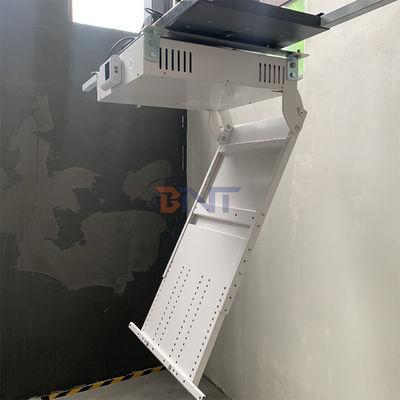

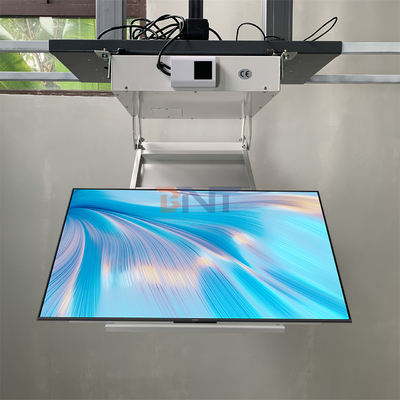

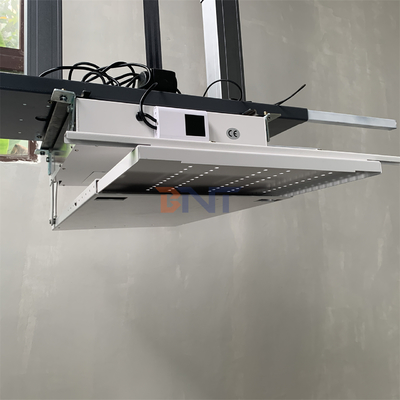

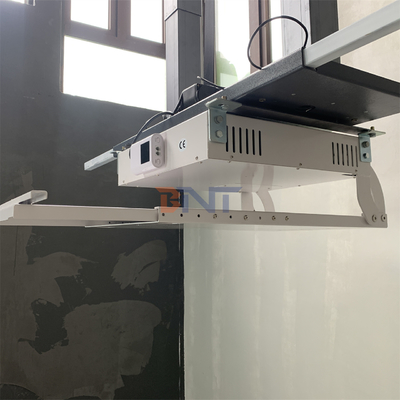

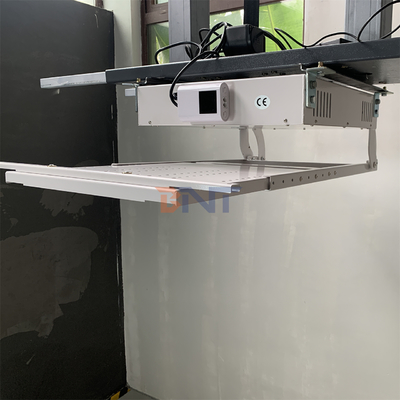

Product name | TV ceiling flipper |
PRODUCT MODEL | TCL-4 |
Flip angle | 0-105° |
Power consumption | ≤ 80W (standby ≤ 0.5W) |
Electrical machinery | Communication worm motor |
Bear a heavy burden | 60KG |
locate mode | Mechanical positioning (with dual protection) |
Colour | High gloss white (other colors can be customized) |
Accuracy | 1mm up and down, 0 ° left and right deviation |
Remote control distance | 50 meters (open space) |
Suitable for installing television | 32-70 inches |
control interface | Wireless remote control, buttons RS232 |
INPUT VOLTAGE | 220V~50/60Hz |
power consumption | ≤ 100W (standby ≤ 0.5W) |
weight | 32kg (net weight) |
Installation method | Ceiling hoisting |
