Product Details:
Place of Origin: Guangdong, China
Brand Name: Boente
Certification: ce
Contact Now
Detailed Product Description
Private Mold: Yes Type: Ceiling TV Mount
Max Vesa: 600x400 Material: Cold Rolled Steel
Maximum Tilt Angle: 105 Maximum Compatible Size: 70"
Minimum Compatible Size: 32" Suitable TV Size: 32~70 Inch Plasma TV
Loading Capacity: 60kg Packing Size: 97*67*36cm
Rotate Angle: 0-105 Degree Control System: Remote Control/ Wired Switch
Voltage: 110-240AC Warranty: 1 Years

Products Description


TCL-4 is a LCD TV hidden hanger specially developed for conference engineering, home furnishings, and hotel room applications. It uses professional worm motors from top domestic brands and independently developed digital control circuit boards to ensure reliable and stable operation of the product.
Product name
TV ceiling flipper
PRODUCT MODEL
TCL-4
Flip angle
0-105°
Power consumption
≤ 80W (standby ≤ 0.5W)
Electrical machinery
Communication worm motor
Bear a heavy burden
60KG
locate mode
Mechanical positioning (with dual protection)
Colour
High gloss white (other colors can be customized)
Accuracy
1mm up and down, 0 ° left and right deviation
Remote control distance
50 meters (open space)
Suitable for installing television
32-70 inches
control interface
Wireless remote control, buttons RS232
INPUT VOLTAGE
220V~50/60Hz
power consumption
≤ 100W (standby ≤ 0.5W)
weight
32kg (net weight)
Installation method
Ceiling hoisting
Boente CE Certified 105 Degree Vertical Motorized TV Lift System Hidden Ceiling Type for 32~70 Inch Plasma TVs Remote Control 0
Product Features
1. Lightweight, strong structure, simple and easy to install, convenient and fast adjustment.
2. Adopting high-quality AC deceleration, long service life, and good stability 3. Built in integrated control board with high reliability 4. The flip angle can be adjusted, resulting in a more perfect sound performance.

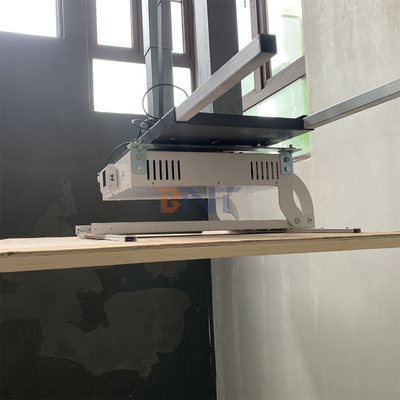

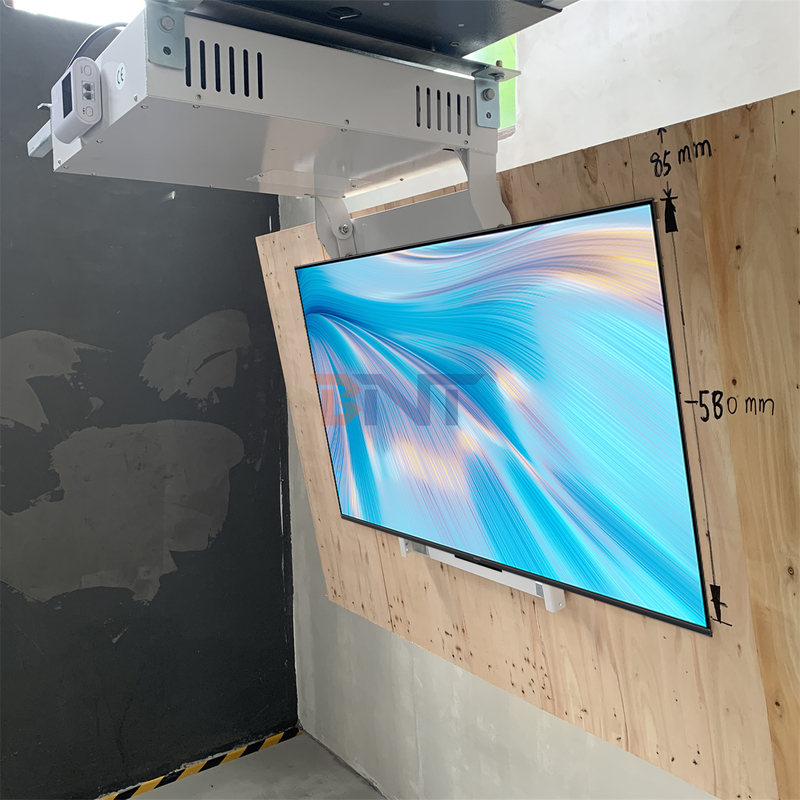

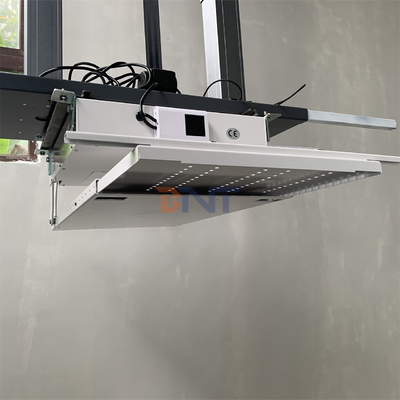

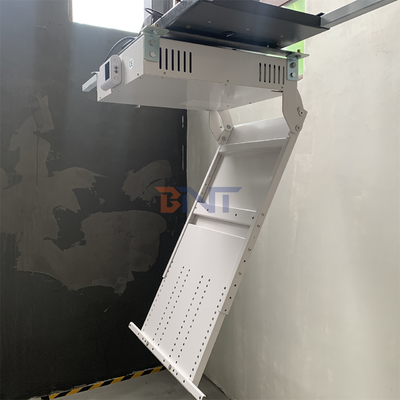

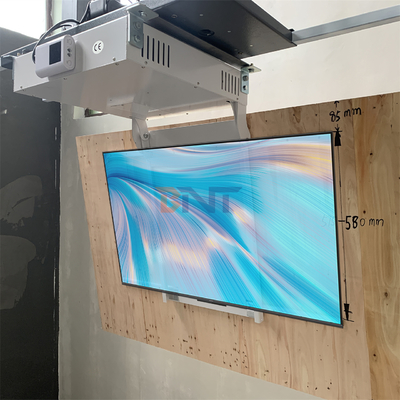

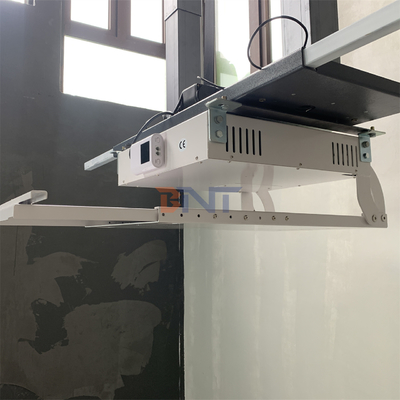

Product Details
Boente CE Certified 105 Degree Vertical Motorized TV Lift System Hidden Ceiling Type for 32~70 Inch Plasma TVs Remote Control 2
Close
Boente CE Certified 105 Degree Vertical Motorized TV Lift System Hidden Ceiling Type for 32~70 Inch Plasma TVs Remote Control 4
Open
Boente CE Certified 105 Degree Vertical Motorized TV Lift System Hidden Ceiling Type for 32~70 Inch Plasma TVs Remote Control 6

Boente CE Certified 105 Degree Vertical Motorized TV Lift System Hidden Ceiling Type for 32~70 Inch Plasma TVs Remote Control 8

Project Case
Boente CE Certified 105 Degree Vertical Motorized TV Lift System Hidden Ceiling Type for 32~70 Inch Plasma TVs Remote Control 10
Boente CE Certified 105 Degree Vertical Motorized TV Lift System Hidden Ceiling Type for 32~70 Inch Plasma TVs Remote Control 12
